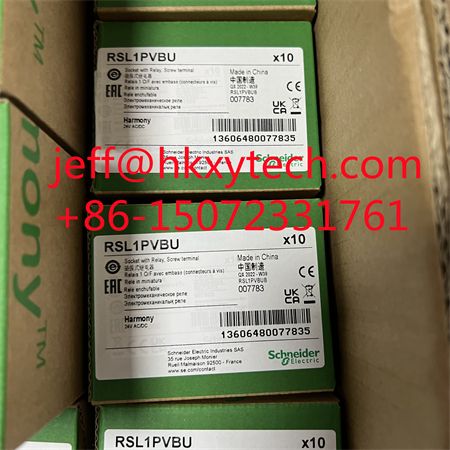

Schneider Electric RSL1PVBU Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, screw connectors, 24V AC DC

Schneider Electric RSL1PVBU Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, screw connectors, 24V AC DC

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Main

Range of product Harmony Electromechanical Relays

Series name Interface relay

Product or component type Pre-assembled plug-in relay with socket

Device short name RSL

Contacts type and composition 1 C/O

Contact operation Standard

[Uc] control circuit voltage 24 V DC

[Ithe] conventional enclosed thermal current 6 A at -40…55 °C

Status LED With

Shape of pin Flat (PCB type)

Schneider Electric RSL1PVBU Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, screw connectors, 24V AC DC

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Complementary

Fixing mode Plastic compression spring

Average resistance 3390 Ohm network: DC at 23 °C +/- 10 %

[Ui] rated insulation voltage 250 V conforming to EN/IEC

277 V conforming to cUL

[Uimp] rated impulse withstand voltage 6 kV conforming to IEC

Contacts material Silver alloy (AgSnO2)

[Ie] rated operational current 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL

Minimum switching current 100 mA

Maximum switching voltage 277 V

Minimum switching voltage 12 V

Maximum switching capacity 1500 VA

150 W

Minimum switching capacity 120 mW

Operating rate <= 18000 cycles/hour no-load

<= 360 cycles/hour under load

Mechanical durability 10000000 cycles

Electrical durability 60000 cycles for resistive load, 6 A at 250 V, AC-1

Operating time 5 ms reset

12 ms

Marking CE

Protection category RT III

Test levels Level A group mounting

Operating position Any position

Height 78.6 mm

Width 6.2 mm

Depth 95 mm

Terminals description ISO n°1 (A1-A2)CO

(11-12-14)OC

Sale per indivisible quantity 10

Net weight 0.029 kg

Load current 6 A at 250 V AC 0.5 mm mounting distance

Average coil consumption 0.17 W, DC

Drop-out voltage threshold >= 0.05 Uc

Contact terminal arrangement Separate

Connections - terminals Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end

Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end

Tightening torque < 0.5 N.m for M2.5 screw(s)

Safety reliability data B10d = 60000

Control type Without push-button

Mounting support 35 mm symmetrical DIN rail

Device presentation Complete product

Schneider Electric RSL1PVBU Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, screw connectors, 24V AC DC

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Environment

Input voltage 24 V AC/DC (input voltage limit: 21.6...28.8 V)

Dielectric strength 1000 V AC between contacts

4000 V AC between coil and contact

Standards CSA C22.2 No 14

UL 508

EN/IEC 61810-1

Product certifications UL

GOST

CSA

Ambient air temperature for storage -40…85 °C

Vibration resistance 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to EN/IEC 60068-2-6

5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to EN/IEC 60068-2-6

IP degree of protection IP40 conforming to EN/IEC 60529

Shock resistance 10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27

5 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27

Ambient air temperature for operation -40…55 °C

Schneider Electric RSL1PVBU Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, screw connectors, 24V AC DC

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Height 0.7 cm

Package 1 Width 8 cm

Package 1 Length 9.8 cm

Package 1 Weight 29 g

Unit Type of Package 2 BB1

Number of Units in Package 2 10

Package 2 Height 7.3 cm

Package 2 Width 8.7 cm

Package 2 Length 10.6 cm

Package 2 Weight 313 g

Unit Type of Package 3 S03

Number of Units in Package 3 300

Package 3 Height 30 cm

Package 3 Width 30 cm

Package 3 Length 40 cm

Package 3 Weight 9.918 kg
