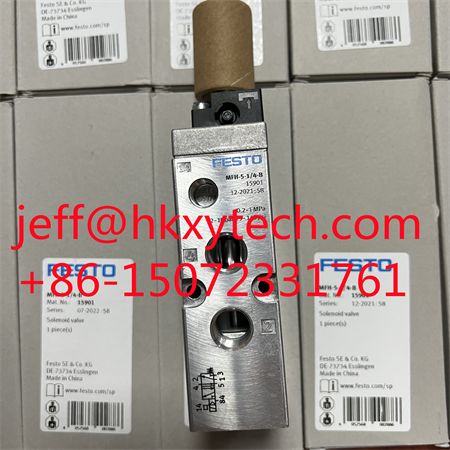

Festo MFH-5-1/4-B 15901 Air solenoid valve

Festo MFH-5-1/4-B 15901 Air solenoid valve

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Valve function

5/2, monostable

Actuation type

Electrical

Width

32 mm

Standard nominal flow rate

1300 l/min

Pneumatic working port

G1/4

Operating pressure

0.2 MPa ... 1 MPa

Operating pressure

2 bar ... 10 bar

Structural design

Plate seat

Reset method

Mechanical spring

Nominal width

7 mm

Width dimension

33 mm

Exhaust air function

With flow control option

Sealing principle

Soft

Mounting position

Any

Manual override

Non-detenting

Type of control

Pilot-controlled

Pilot air supply port

Internal

Flow direction

Non-reversible

Symbol

00991035

Lap

Underlap

b-value

0.29

C value

5.5 l/sbar

Max. switching frequency

3 Hz

Switching time off

36 ms

On switching time

12 ms

Max. positive test pulse with 0 signal

2200 µs

Max. negative test pulse on 1 signal

3700 µs

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Storage temperature

-40 °C ... 60 °C

Temperature of medium

-10 °C ... 60 °C

Ambient temperature

-5 °C ... 40 °C

Product weight

300 g

Electrical connection

Via F coil, to be ordered separately

Type of mounting

Optionally:

On PR rail

With through-hole

Pilot exhaust air port 84

M5

Pneumatic connection 1

G1/4

Pneumatic connection 2

G¼

Pneumatic connection 3

G1/4

Pneumatic connection 4

G1/4

Pneumatic connection 5

G1/4

Note on materials

RoHS-compliant

Seals material

NBR

TPE-U(PU)

Housing material

Die-cast aluminum

Festo MFH-5-1/4-B 15901 Air solenoid valve

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Similar model numbers:

MFH-5-1/4-B-EX

MFH-5-1/4-S-B-EX

JMFH-5-1/4-S-B-EX

JMFH-5-1/4-B-EX

MFH-5-1/4-L-B-EX

MFH-5-1/4-L-S-B-EX

MFH-5-1/4-B

MFH-5-1/4-S-B

JMFH-5-1/4-S-B

JMFH-5-1/4-B

MFH-5-1/4-L-B

MFH-5-1/4-L-S-B
