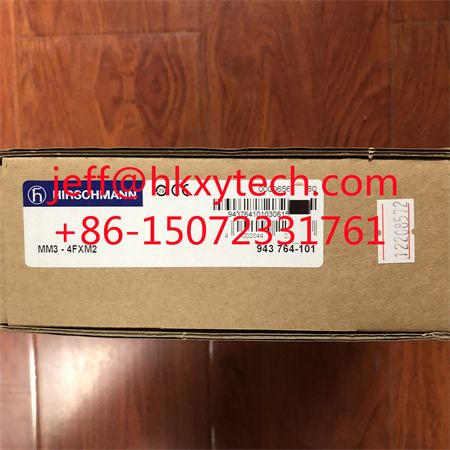

In Stock Hirschmann MM3-4FXM2 Media module for MICE Switches (MS...), 100Base-FX multi-mode F/O

In Stock Hirschmann MM3-4FXM2 Media module for MICE Switches (MS...), 100Base-FX multi-mode F/O

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Product description

Type:MM3-4FXM2

Part Number:943764101

Port type and quantity:4 x 100Base-FX, MM cable, SC sockets

Product Life Cycle

Availability:Last Order Date: December 31st, 2023

Network size - length of cable

Multimode fiber (MM) 50/125 µm:0 - 5000 m, 8 dB link budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 800 MHz x km

Multimode fiber (MM) 62.5/125 µm:0 - 4000 m, 11 dB link budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km

Power requirements

Operating Voltage:power supply via the backplane of the MICE switch

Power consumption:6.8 W

Power output in BTU (IT)/h:23.2 Btu (IT)/h

Software

Diagnostics:LEDs (power, link status, data, 100 Mbit/s, full duplex, ring port, LED test)

Ambient conditions

MTBF (MIL-HDBK 217F: Gb 25 ºC):59.5 Years

Operating temperature:0-+60 °C

Storage/transport temperature:-40-+70 °C

Relative humidity (non-condensing):10-95 %

Mechanical construction

Dimensions (WxHxD):38 mm x 134 mm x 118 mm

Weight:180 g

Mounting:Backplane

Protection class:IP 20

Mechanical stability

IEC 60068-2-6 vibration:1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13.2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

IEC 60068-2-27 shock:15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD):6 kV contact discharge, 8 kV air discharge

EN 61000-4-3 electromagnetic field:10 V/m (80 - 1000 MHz)

EN 61000-4-4 fast transients (burst):2 kV power line, 1 kV data line

EN 61000-4-5 surge voltage:power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line

EN 61000-4-6 Conducted Immunity:3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EMC emitted immunity

EN 55032:EN 55032 Class A

EN 55022:EN 55022 Class A

FCC CFR47 Part 15:FCC 47CFR Part 15, Class A

Approvals

Basis Standard:CE

Safety of industrial control equipment:cUL508

Shipbuilding:DNV

Scope of delivery and accessories

Accessories to Order Separately:ML-MS2/MM labels

Scope of delivery:module, general safety instructions

Further Instructions

Product Documentation:https://www.doc.hirschmann.com

Certificates:https://www.doc.hirschmann.com/certificates.html
