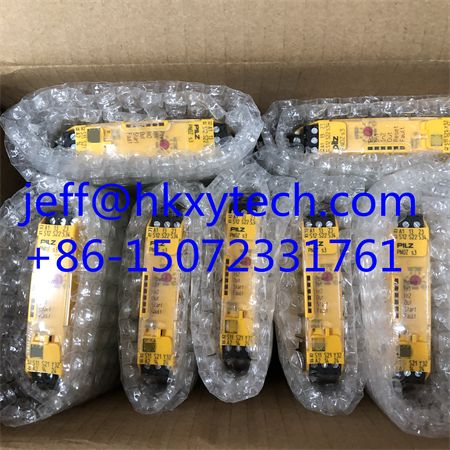

In Stock Pilz 750103 PNOZ s3 24VDC 2 n/o PNOZsigma safety relay (standalone)

In Stock Pilz 750103 PNOZ s3 24VDC 2 n/o, PNOZsigma safety relay (standalone)

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Electrical data

Supply voltage (V) 24  V

Type of supply voltage U1 DC

Power consumption DC 2.5  W

Inputs

Number of inputs 2

Semiconductor outputs

Number of semicond. outputs 1

Utilisation cat. to EN 60947-1 DC-12

Relay outputs

Utilisation cat. AC/DC1 stand. EN 60947-4-1

Voltage AC1 safety cont. 240  V

Max. current AC1 safety cont. 6  A

Voltage DC1 safety cont. 24  V

Max. current DC1 safety cont. 6  A

Utilisation cat. AC15/DC13sta. EN 60947-5-1

Voltage AC15 safety cont. 230  V

Max. current AC15 safety cont. 5  A

Voltage DC13 safety cont. 24  V

Safety contacts: AC at UL 240 VAC G.U. (same polarity)

Relay contact material AgCuNi

Addit. contact details relay + 0.2 µm Au

Environmental data

Climatic suitability to ... EN 60068-2-78

Ambient temperature -10 - 55  °C

Humidity rating 93 % r. h. at 40 °C

Condensation permitted? Not permitted

EMC to standard ... EN 60947-5-1

EN 61000-6-2

EN 61000-6-4

EN 61326-3-1

Vibration to standard ... EN 60068-2-6

Clearance & creepage dist. to EN 60947-1

Overvoltage category III / II

Pollution degree clear.&creep. 2

Protection type, mounting

Protection type, housing

Terminal protection type

Mechanical data

Mounting position any

Housing material lower section PC

Housing material front plate PC

Housing material upper part PC

Connection terminal Screw terminal

Terminal style plug-in

Flex. cond. c/s AWG info 24 - 12 AWG

Height dimension 98  mm

Width dimension 17.5  mm

Depth dimension 120  mm

Net weight 140  g

Gross weight 150  g

In Stock Pilz 750103 PNOZ s3 24VDC 2 n/o, PNOZsigma safety relay (standalone)
