Product Description

The versatility of 60 on-board refrigerant profiles means the testo 549 digital manifold is the only gauge that you need. The proven, rugged design will give you years of dependable service. With optional temperature probes the testo 549 digital manifold provides accurate, real-time superheat and sub-cooling at the push of a button.

•Measures high side / low side pressure and displays saturation / evaportation temperatures

•2-way valve block with three connections and sight glass

•60 refrigerant profiles stored in the instrument

•Large 2-line backlit display

•Provides real-time superheat and sub-cooling with optional temperature probes

Delivery Scope

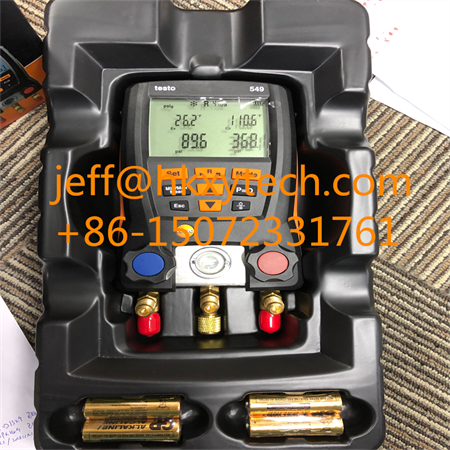

testo 549, digital manifold; including batteries, certificate of conformity, and user's manual.

In Stock Testo 549 - Digital manifold

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Technical Data

Temperature

Measuring range-58° to 302 °F / -50 to +150 °C

Accuracy±0.9 °F / ±0.5 °C

Resolution0.1 °F / 0.1 °C

Probe connection2 Temperature NTC measurement channels

Pressure measurement

Measuring range-15 to +870 psi / -1 to +60 bar

Accuracy±0.5 % Fs

Resolution0.14 psi / 0.01 bar

Probe connection3 x 1/4" SAE

Overload rel. (high pressure)943 psi / 65 bar

Vacuum

Measuring range-15 to 0 psi (indication) / -1 to 0 bar

General technical data

Weight37.39 oz. / 1060 g

Dimensions7.87 x 4.29 x 2.48 in. / 200 x 109 x 63 mm

Operating temperature-4° to 122 °F / -20 to +50 °C

Protection classIP42

Product colourBlack

Battery lifeapprox. 250h (display light off, Bluetooth off)

Refrigerants in instrumentR114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)

Refrigerants update by Testo ServiceR11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22

Storage temperature-4° to 140 °F / -20 to +60 °C
