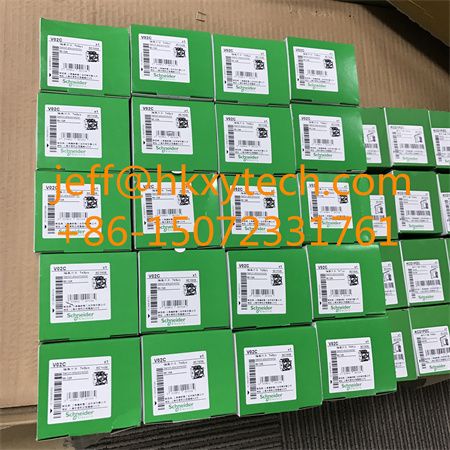

Schneider V02C TeSys VARIO - Switch body for switch-disconnector - 3 poles - 12 A

Schneider V02C TeSys VARIO - Switch body for switch-disconnector - 3 poles - 12 A

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Main

RangeTeSys

Product NameTeSys VARIO

Device Short NameV

Product TypeSwitch body

Complementary

Mounting SupportPlate

Symmetrical rail

Performance LevelHigh performance

Number of Poles3P

Contact Type and Composition3 NO

Network typeAC

DC

Network frequency50/60 Hz

[Ue] IEC Rated Operational Voltage690 V AC 50/60 Hz

IEC Rated Operational Power in W3 kW at 400...415 V (AC-3)

4 kW at 500 V (AC-3)

1.5 kW at 230...240 V (AC-3)

5.5 kW at 500 V (AC-23A)

5.5 kW at 690 V (AC-3)

7.5 kW at 690 V (AC-23A)

3 kW at 230...240 V (AC-23A)

4 kW at 400...415 V (AC-23A)

[Ie] Rated Operational Current8.1 A AC-23 Ue: 400 V

[Ith] Conventional Free Air Thermal Current12 A

[Ithe] Conventional Enclosed Thermal Current10 A

Making capacity ( I Rms)120 A at 400 V AC-21A

120 A at 400 V AC-22A

120 A at 400 V AC-23A

Breaking Capacity120 A at 400 V (AC-21A)

120 A at 400 V (AC-22A)

120 A at 400 V (AC-23A)

Rated Conditional Short Circuit Current10 kA at 400 V - associated fuse 12 A aM

10 kA at 400 V - associated fuse 12 A gG

[Icm] Rated Short Circuit Making Capacity1 kA at 400 V at Ipeak

Intermittent duty class30

Suitability for isolationYes

[Uimp] rated impulse withstand voltage8 kV

[Icw] rated short-time withstand Rms current300 A at 400 V duration: 1 s

Mechanical Durability100000 cycles

Electrical Durability100000 cycles AC-21

30000 cycles DC-1

30000 cycles DC-2

30000 cycles DC-3

30000 cycles DC-4

30000 cycles DC-5

IEC Terminal ConnectionPower circuit: screw clamp terminals10 mm² - solid

Power circuit: screw clamp terminals6 mm² - flexible - with cable end

Tightening TorquePower circuit: 2.1 N.m - on screw clamp terminals

Height74 mm

Width55 mm

Depth60 mm

Product Weight0.2 kg

Schneider V02C TeSys VARIO - Switch body for switch-disconnector - 3 poles - 12 A

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Environment

StandardsIEC 60947-3

Product CertificationsUL

CSA

GL

UKCA

Degree of ProtectionIP20 conforming to IEC 60529

Protective TreatmentTC

Mechanical RobustnessVibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6

Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient Air Temperature for Operation-20…50 °C

Fire Resistance960 °C conforming to IEC 60695-2-1

Schneider V02C TeSys VARIO - Switch body for switch-disconnector - 3 poles - 12 A

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Packing Units

Unit Type of Package 1PCE

Number of Units in Package 11

Package 1 Height7.8 cm

Package 1 Width8.4 cm

Package 1 Length12 cm

Package 1 Weight171 g

Unit Type of Package 2S03

Number of Units in Package 224

Package 2 Height30 cm

Package 2 Width30 cm

Package 2 Length40 cm

Package 2 Weight4.682 kg

Unit Type of Package 3P06

Number of Units in Package 3192

Package 3 Height77 cm

Package 3 Width60 cm

Package 3 Length80 cm

Package 3 Weight47.036 kg
