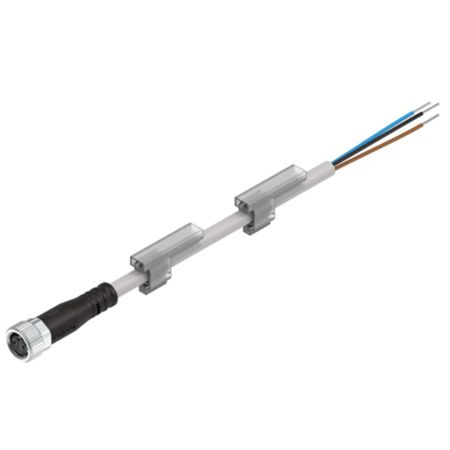

Festo NEBU-M8G3-E-5-LE3 Connecting cable 569843

Festo NEBU-M8G3-E-5-LE3 Connecting cable 569843

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

•Conforms to standardWire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104

•Explosion prevention and protectionObserve the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX)

•Cable designationWith 2x label holders

•Product weight123 g

•Electrical connection 1, functionField device end

•Electrical connection 1, designRound

•Electrical connection 1, connection typeSocket

•Electrical connection 1, cable outletStraight

•Electrical connection 1, connection technologyM8x1 A-coded as per EN 61076-2-104

•Electrical connection 1, number of pins/wires3

•Electrical connection 1, occupied pins/wires3

•Electrical connection 1, type of mountingScrew-type lock

•Electrical connection for input 1, connection pattern00991871

•Electrical connection 2, functionControl side

•Electrical connection 2, connection typeCable

•Electrical connection 2, connection technologyOpen end

•Electrical connection 2, number of pins/wires3

•Electrical connection 2, occupied pins/wires3

•DC operating voltage range0 V ... 60 V

•Operating voltage range AC0 V ... 60 V

•Current rating at 40°C3 A

•Surge resistance1.5 kV

•Cable length5 m

•Cable characteristicSuitable for energy chains

•Connector cable test conditionsFlexural strength: as per Festo standard Test conditions on request Cable chain: 5 million cycles, bending radius 28 mm

•Bending radius, fixed cable installation12 mm

•Bending radius, flexible cable installation39 mm

•Cable diameter3.8 mm

•Cable diameter tolerance± 0.1 mm

•Cable design3 x 0.25 mm²

•Nominal conductor cross section0.25 mm²

•Degree of protectionIP65 IP68 IP69K

•Note on degree of protectionIn mounted state

•Special featuresOil-resistant

•Ambient temperature-25 °C ... 80 °C

•Ambient temperature with flexible cable installation-5 °C ... 80 °C

•CE marking (see declaration of conformity)As per EU low voltage directive As per EU RoHS directive

•UKCA marking (see declaration of conformity)To UK instructions for electrical equipment To UK RoHS instructions

•LABS (PWIS) conformityVDMA24364-B2-L

•Note on materialsRoHS-compliant Halogen-free Free of phosphoric acid ester

•Contamination level3

•Corrosion resistance class (CRC)2 - Moderate corrosion stress

•Material of cable sheathTPE-U(PUR)

•Color cable sheathGray

•Housing materialTPE-U(PUR)

•Housing colourBlack

•Material of screw-type lockBrass, nickel-plated

•Seals materialNBR

•Material of pin contactsCopper alloy, gold-plated

•Insulating sheath materialPP
