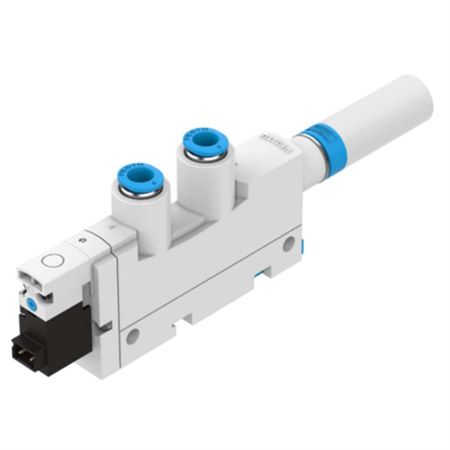

Festo VN-10-L-T3-PQ2-VQ2-RO1-B Vacuum generator 532641

News September 20, 2022

Festo VN-10-L-T3-PQ2-VQ2-RO1-B Vacuum generator 532641

Vacuum generator

Festo VN-10-L-T3-PQ2-VQ2-RO1-B Vacuum generator 532641

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761


•Nominal width of Laval nozzle0.95 mm

•Width dimension14 mm

•Muffler construction typeOpen

•Mounting positionAny

•Ejector characteristicsStandard High suction volume

•Manual overrideNon-detenting

•Integrated functionEjector pulse valve, pneumatic Shut off valve, electric Pneumatic muffler open

•Structural designT-shape

•Symbol00991944

•Valve function2/2

•Operating pressure for max. suction rate5 bar

•Operating pressure2 bar ... 8 bar

•Nominal operating pressure6 bar

•Max. suction rate with respect to atmosphere40.5 l/min

•Air supply time at nominal operating pressure0.67 s

•DC operating voltage range21.6 V ... 26.4 V

•Electrical power consumption1.2 W

•Duty cycle100%

•Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]

•Information on operating and pilot mediaOperation with oil lubrication not possible

•Corrosion resistance class (CRC)1 - Low corrosion stress

•Temperature of medium0 °C ... 50 °C

•Noise level at nominal operating pressure72 dB(A)

•Degree of protectionIP40

•Ambient temperature0 °C ... 50 °C

•Product weight63 g

•Electrical connectionPlug

•Type of mountingWith through-hole With H-rail With accessories

•Pneumatic connection 1QS-6

•Pneumatic connection 3Pneumatic muffler open

•Vacuum connectionQS-6

•Material of connecting threadWrought aluminum alloy, anodized

•Note on materialsRoHS-compliant

•Seals materialNBR

•Female nozzle materialPOM

•Housing materialPA-reinforced POM-reinforced

•Muffler materialPE

•Material of screwsSteel

•Material of jet nozzleWrought aluminum alloy

•Material of pneumatic fittingBrass Nickel-plated
