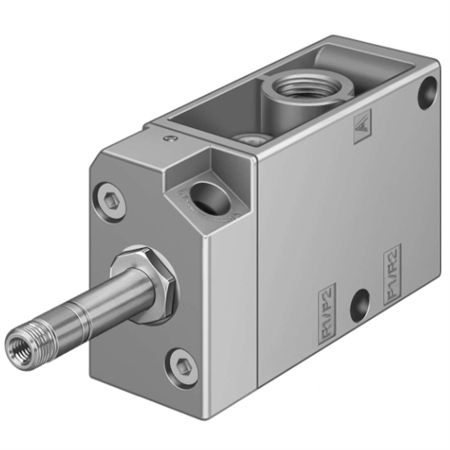

Festo MFH-3-1/4 Air solenoid valve 9964

Festo MFH-3-1/4 Air solenoid valve 9964

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

•Valve function3/2, closed, monostable

•Actuation typeElectrical

•Width30.5 mm

•Standard nominal flow rate800 l/min

•Pneumatic working portG1/4

•Operating voltageVia solenoid coil, to be ordered separately

•Operating pressure0.15 MPa ... 0.8 MPa

•Operating pressure1.5 bar ... 8 bar

•Structural designPlate seat

•Reset methodMechanical spring

•Certificationc UL us - Recognized (OL)

•Degree of protectionIP65

•Nominal width7 mm

•Width dimension32 mm

•Exhaust air functionWith flow control option

•Sealing principleSoft

•Mounting positionAny

•Manual overrideDetenting

•Type of controlPilot-controlled

•Flow directionNon-reversible

•Symbol00991041

•LapUnderlap

•Switching time off29 ms

•On switching time10 ms

•Max. positive test pulse with 0 signal2200 µs

•Max. negative test pulse on 1 signal3700 µs

•Coil characteristicsSee solenoid coil, to be ordered separately

•Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]

•Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)

•Corrosion resistance class (CRC)1 - Low corrosion stress

•Storage temperature-20 °C ... 60 °C

•Temperature of medium-10 °C ... 60 °C

•Ambient temperature-5 °C ... 40 °C

•Product weight320 g

•Electrical connectionVia F coil, to be ordered separately

•Type of mountingOn terminal strip With through-hole Optionally:

•Pilot exhaust air port 82M5

•Pneumatic connection 1G1/4

•Pneumatic connection 2G¼

•Pneumatic connection 3G1/4

•Note on materialsRoHS-compliant

•Seals materialNBR

•Housing materialDie-cast aluminum

Festo MFH-3-1/4 Air solenoid valve 9964

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Similar model numbers:

MFH-3-1/4-S-EX

MFH-3-1/4-EX

MFH-3-1/4

MFH-3-1/4-S

MFH-3-1/4-24-EX

MFH-3-1/4-120-EX

MFH-3-1/4-120-NPT-EX

MFH-3-1/4-NPT

MFH-3-1/4-S-NPT

MFH-3-1/4-24-NPT-EX
