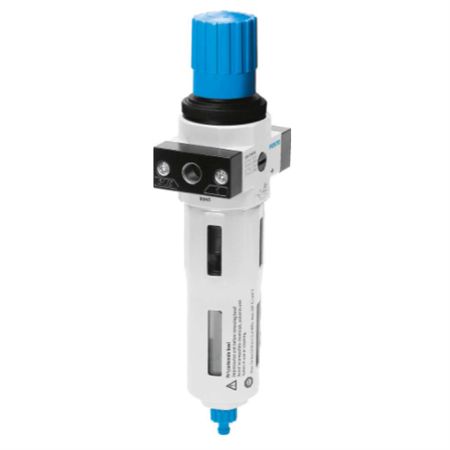

Festo LFR-D-MINI Basic valve 546432

September 19, 2022

Festo LFR-D-MINI Basic valve 546432

jeff@hkxytech.com jeff@whxyauto.com +86-15072331761

•SizeMini

•SeriesD

•Actuator lockRotary knob with detent

•Mounting positionVertical +/- 5°

•Grade of filtration40 µm

•Condensate drainManually rotating

•Structural designFilter regulator without pressure gauge

•Max. condensate volume21.991 ml

•Bowl guardMetal bowl guard

•Symbol00991586

•Pressure gaugeG1/8 prepared

•Operating pressure0.951 bar ... 16.547 bar

•Pressure regulation range0.476 bar ... 12.411 bar

•Max. pressure hysteresis0.207 bar

•Standard nominal flow rate3336.86 l/min

•Operating mediumCompressed air as per ISO 8573-1:2010 [-:9:-] Inert gas

•Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)

•Corrosion resistance class (CRC)2 - Moderate corrosion stress

•Storage temperature-10 °C ... 60 °C

•Air quality class at the outputCompressed air as per ISO 8573-1:2010 [7:8:4] Inert gas

•Temperature of medium-10 °C ... 60 °C

•Ambient temperature-10 °C ... 60 °C

•Product weight406.823 g

•Type of mountingLine installation With accessories Optionally:

•Note on materialsRoHS-compliant

•Housing materialDie-cast zinc

•Material of bowlPC

Festo LFR-D-MINI Basic valve 546432

jeff@hkxytech.com jeff@whxyauto.com +86-15072331761

Similar model numbers:

LFR-D-MINI

LFR-D-MINI-A
