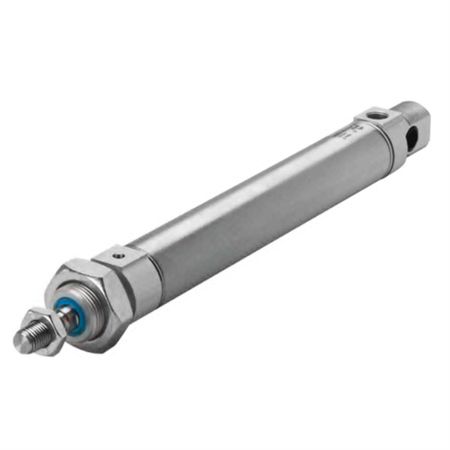

Festo ESNU-16-25-P-A ISO cylinder 19264

September 19, 2022

Festo ESNU-16-25-P-A ISO cylinder 19264

jeff@hkxytech.com jeff@whxyauto.com +86-15072331761

•Stroke25 mm

•Piston diameter16 mm

•Piston rod threadM6

•CushioningElastic cushioning rings/pads at both ends

•Mounting positionAny

•Conforms to standardCETOP RP 52 P ISO 6432

•Piston rod endExternal thread

•Structural designPiston Piston rod Cylinder barrel

•Position sensingFor proximity sensor

•Symbol00991729

•VariantsPiston rod at one end

•Operating pressure0.12 MPa ... 1 MPa

•Operating pressure1.2 bar ... 10 bar

•Mode of operationSingle-acting Pushing

•Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]

•Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)

•Corrosion resistance class (CRC)2 - Moderate corrosion stress

•LABS (PWIS) conformityVDMA24364-B1/B2-L

•Ambient temperature-20 °C ... 80 °C

•Impact energy in the end positions0.15 J

•Theoretical force at 6 bar, advancing106.5 N

•Moving mass at 0 mm stroke23 g

•Additional moving mass per 10 mm stroke2 g

•Basic weight with 0 mm stroke89.9 g

•Additional weight per 10 mm stroke4.6 g

•Type of mountingWith accessories

•Pneumatic connectionM5

•Note on materialsRoHS-compliant

•Cover materialWrought aluminum alloy Plain anodized

•Seals materialNBR TPE-U(PU)

•Piston rod materialHigh-alloy stainless steel

•Material of cylinder barrelHigh-alloy stainless steel
