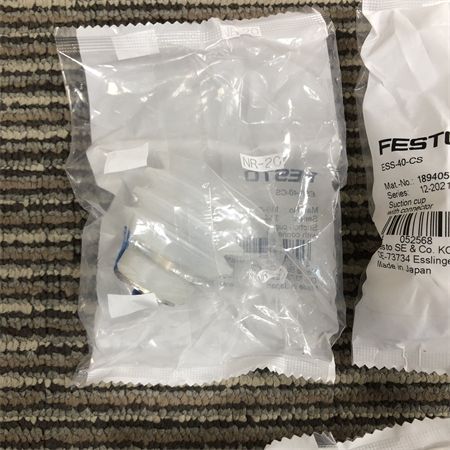

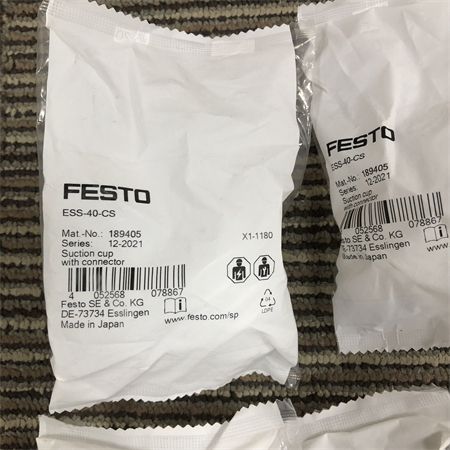

Festo ESS-40-CS Vacuum suction cup 189405

News September 16, 2022

Festo ESS-40-CS Vacuum suction cup 189405



Festo ESS-40-CS Vacuum suction cup 189405

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761


•Suction cup height compensation12.8 mm

•Min. workpiece radius100 mm

•Nominal width3 mm

•Suction cup diameter40 mm

•Suction cup volume19.72 cm³

•Connection positionTop

•Mounting positionAny

•Symbol00991485

•Classification of suction cup holderSize 4

•Suction cup shapeRound bellows, 3.5 convolutions

•Operating pressure0 bar ... 0.95 bar

•Nominal operating pressure-0.7 bar

•Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

•Corrosion resistance class (CRC)1 - Low corrosion stress

•For use in the food industrySee supplementary material information

•Ambient temperature-30 °C ... 180 °C

•Holding force at nominal operating pressure42.4 N

•Lateral force at nominal operating pressure13 N

•Product weight21.9 g

•Type of mountingVia vacuum connection

•Vacuum connectionM6

•ColorTransparent

•Shore hardness50 +/- 5

•Material of screwed trunnionWrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated

•Note on materialsContains paint-wetting impairment substances RoHS-compliant

•Suction cup materialVMQ (silicone)
