Festo PUN-H-10X1,5-BL Plastic tubing 197386

News September 16, 2022

Festo PUN-H-10X1,5-BL Plastic tubing 197386

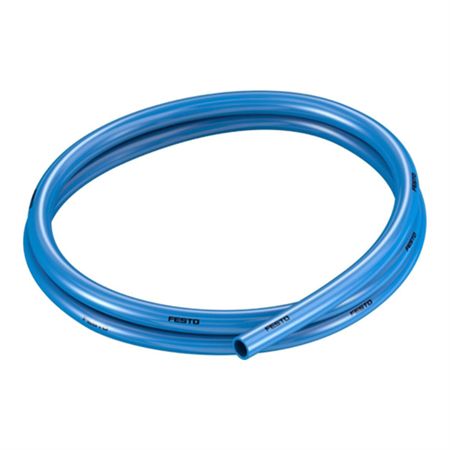

Plastic tubing

Festo PUN-H-10X1,5-BL Plastic tubing 197386

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761


•Outside diameter10 mm

•Bending radius relevant for flow rate52 mm

•Inside diameter7 mm

•Min. bending radius28 mm

•Tubing characteristicssuitability for energy chains

•Temperature-dependent operating pressure-0.095 MPa ... 1 MPa

•Temperature-dependent operating pressure-0.95 bar ... 10 bar

•Temperature-dependent operating pressure-13.775 psi ... 145 psi

•CertificationGerman Technical Control Board (TÜV)

•Certificate issuing authorityB 013277 0506 00

•Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com

•Material fire testUL94 HB

•LABS (PWIS) conformityVDMA24364-B2-L

•Suitability for the production of Li-ion batteriesMetals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils

•Cleanroom classStatically installed element, no meaningful evaluation possible according to ISO 14644-1

•For use in the food industrySee supplementary material information

•Ambient temperature-35 °C ... 60 °C

•Product weight by length0.0465 kg/m

•Pneumatic connectionFor plug connection outside diameter 10 mm

•ColorBlue

•Shore hardnessD 52 +/-3

•Note on materialsRoHS-compliant

•Material of pneumatic tubingTPE-U(PU)


Festo PUN-H-10X1,5-BL Plastic tubing 197386
