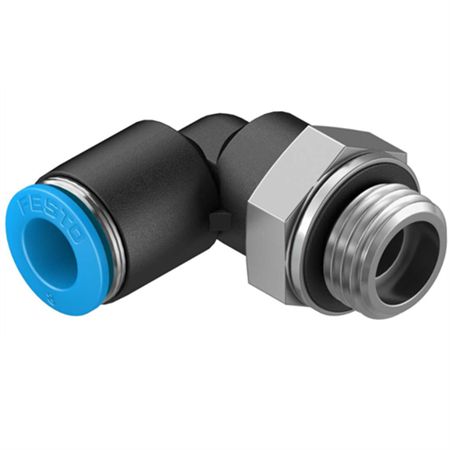

Festo QSL-G1/4-8 Push-in L-fitting 186120

September 15, 2022

Festo QSL-G1/4-8 Push-in L-fitting 186120

jeff@hkxytech.com jeff@whxyauto.com +86-15072331761

•SizeStandard

•Nominal width6.7 mm

•Type of seal on screwed trunnionSealing ring

•Mounting positionAny

•Pack size10

•Structural designPush-pull principle

•Operating pressure for entire temperature range-0.95 bar ... 6 bar

•Temperature-dependent operating pressure-0.95 bar ... 14 bar

•Maritime classificationSee certificate

•Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com

•Information on operating and pilot mediaOperation with oil lubrication possible

•Corrosion resistance class (CRC)1 - Low corrosion stress

•Ambient temperature-10 °C ... 80 °C

•Nominal tightening torque9 Nm

•Tolerance for nominal tightening torque± 20%

•Product weight23 g

•Pneumatic connection 1External thread G1/4

•Pneumatic connection 2for pneumatic tubing outside diameter 8 mm

•Releasing ring colorBlue

•Note on materialsRoHS-compliant

•Housing materialPBT

•Releasing ring materialPOM

•Material of tubing sealNBR

•Material of tube retaining clawHigh-alloy stainless steel

Festo QSL-G1/4-8 Push-in L-fitting 186120

jeff@hkxytech.com jeff@whxyauto.com +86-15072331761

Similar model numbers:

QSL-G1/4-8

QSL-G1/4-8-50
