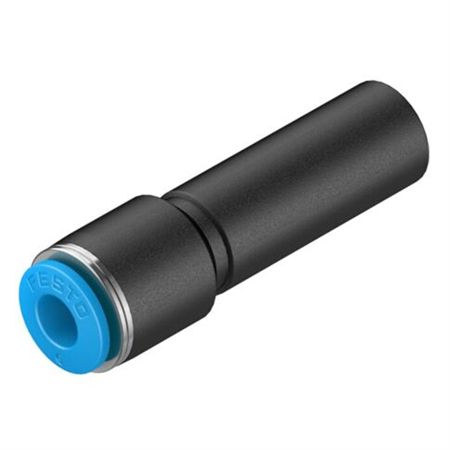

Festo QS-12H-10-20 Push-in connector 130698

September 15, 2022

Festo QS-12H-10-20 Push-in connector 130698

jeff@hkxytech.com jeff@whxyauto.com +86-15072331761

•SizeStandard

•Nominal width6.3 mm

•Mounting positionAny

•Pack size20

•Structural designPush-pull principle

•Operating pressure for entire temperature range-0.95 bar ... 6 bar

•Temperature-dependent operating pressure-0.95 bar ... 14 bar

•Maritime classificationSee certificate

•Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com

•Information on operating and pilot mediaOperation with oil lubrication possible

•Corrosion resistance class (CRC)1 - Low corrosion stress

•Ambient temperature-10 °C ... 80 °C

•Product weight9.6 g

•Pneumatic connection 1Push-in sleeve QS-12

•Pneumatic connection 2for pneumatic tubing outside diameter 10 mm

•Releasing ring colorBlue

•Note on materialsRoHS-compliant

•Housing materialPBT

•Releasing ring materialPOM

•Material of tubing sealNBR

•Material of tube retaining clawHigh-alloy stainless steel

Festo QS-12H-10-20 Push-in connector 130698

jeff@hkxytech.com jeff@whxyauto.com +86-15072331761

Similar model numbers:

QS-12-8

QS-12-10

QS-12-10-20

QS-12

QS-12-20

QS-12H-6

QS-12H-8

QS-12H-10

QS-12H-10-20
