Pepperl+Fuchs KFD2-EB2.SP Power Feed Module

News September 13, 2022

Pepperl+Fuchs KFD2-EB2.SP Power Feed Module

Power Feed Module

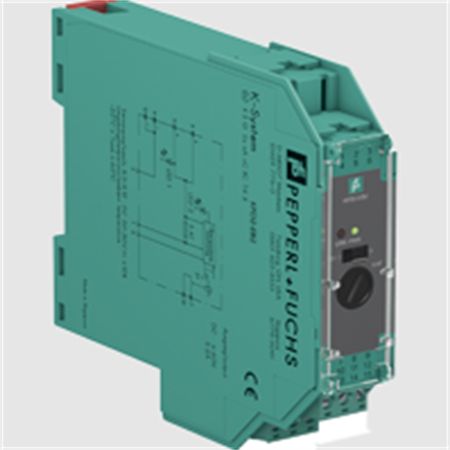

Pepperl+Fuchs KFD2-EB2.SP Power Feed Module

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761


Product Description

Power feed module with spring terminals

Supply

Connectionterminals 11+, 12-

terminals 8+, 9-

Rated voltage20 ... 30 V DC

The maximum rated operating voltage of the devices plugged onto the Power Rail must not be exceeded.

Fusing5 AT/250 V AC

recommended maximum utilization of the fuse: 80 %

Power dissipation≤ 1 W

Output

ConnectionPower Rail

Output rated operating currentmax. 4 A

Output voltageUi ≥ rated voltage Ur = Ui - 0.6 V

Fault signalrelay output: NO contact

Contact loading30 V AC/ 2 A / cos φ ≥ 0.7 ; 40 V DC/ 2 A

Energized/De-energized delayapprox. 20 ms / approx. 20 ms

Indicators/settings

Display elementsLEDs

Control elementsDIP switch

Configurationvia DIP switches

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibilityNE 21:2006

Degree of protectionIEC 60529:2001

Ambient conditions

Ambient temperature-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protectionIP20

Connectionspring terminals

Massapprox. 100 g

Dimensions20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
