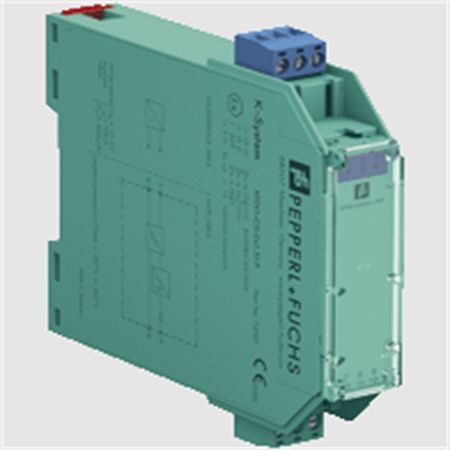

Pepperl+Fuch KFD2-VR-Ex1.19-Y109129 Voltage Repeater

News September 08, 2022

Pepperl+Fuch KFD2-VR-Ex1.19-Y109129 Voltage Repeater

Repeater

Pepperl+Fuch KFD2-VR-Ex1.19-Y109129 Voltage Repeater

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761


General specifications

Signal typeAnalog input

Supply

ConnectionPower Rail or terminals 11+, 12-

Rated voltage20 ... 35 V DC

Ripplewithin the supply tolerance

Rated current< 30 mA

Input

Connection sidefield side

Connectionterminals 4+, 5-

Input resistancemin. 10 MΩ

Transmission range-10 ... 10 V

Offset voltage/current< 10 mV / < 1 µA

Output

Connection sidecontrol side

Connectionterminals 7-, 8+

Voltage-10 ... 10 V

Output resistancemax. 20 Ω

Transfer characteristics

Cut-off frequency50 kHz (-3 dB)

Deviation

After calibration± 30 mV at 20 °C (68 °F)

Influence of ambient temperature< 0.01 % of span per K

Rise time≤ 10 µs

Galvanic isolation

Output/power supplyfunctional insulation, rated insulation voltage 50 V AC

Indicators/settings

Display elementsLED

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibilityNE 21

Degree of protectionIEC 60529

Ambient conditions

Ambient temperature-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals

Massapprox. 110 g

Dimensions20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001


Pepperl+Fuch KFD2-VR-Ex1.19-Y109129 Voltage Repeater

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761


Similar model numbers:

KCD2-RR2-Ex1

KFD0-CS-Ex1.51P

KFD0-CS-Ex1.54

KFD0-CS-Ex2.52

KFD0-SCS-Ex1.55

KFD2-VR-Ex1.18

KFD2-VR-Ex1.19

KFD2-VR2-Ex1.50M

KFD2-VR4-Ex1.26

KFD0-CS-Ex1.50P

KFD0-CS-Ex1.54-Y2

KFD0-CS-Ex2.50P

KFD0-CS-Ex2.51P

KFD0-CS-Ex2.54

KCD2-RR2-Ex1.SP

KFD0-CS-Ex1.52

KFD2-VR-Ex1.12

KFD2-VR-Ex1.19-Y109129

KFD2-VR2-Ex1.500M
