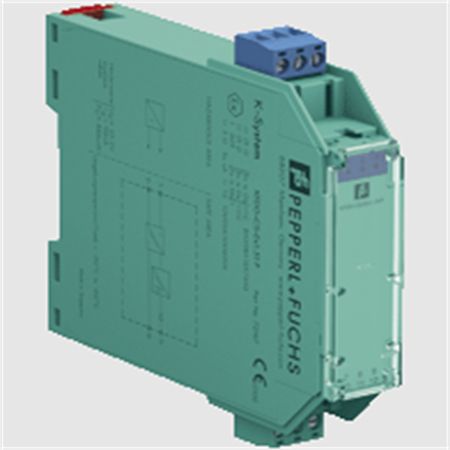

Pepperl+Fuch KFD2-VR-Ex1.12 Voltage Repeater

Pepperl+Fuch KFD2-VR-Ex1.12 Voltage Repeater

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

General specifications

Signal typeAnalog input

Supply

ConnectionPower Rail or terminals 11+, 12-

Rated voltage20 ... 35 V DC

Ripplewithin the supply tolerance

Rated current< 20 mA

Input

Connection sidefield side

Connectionterminals 4+, 5-

Input resistancemin. 10 MΩ

Transmission range0 ... 9 V

Offset voltage/current< 2 mV / < 7 nA

Output

Connection sidecontrol side

Connectionterminals 7-, 8+

Voltage0 ... 9 V

Output resistance≤ 20 Ω

Transfer characteristics

Cut-off frequency1.2 kHz (-3 dB)

Deviation

After calibration± 5 mV at 20 °C (68 °F)

Influence of ambient temperature≤ 0.005 % of range per K

Rise time≤ 0.4 ms

Galvanic isolation

Output/power supplyBasic insulation according to DIN EN 50178, rated insulation voltage of AC 50 V

Indicators/settings

Display elementsLED

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Conformity

Insulation coordinationEN 50178

Electromagnetic compatibilityNE 21

Degree of protectionIEC 60529

Ambient conditions

Ambient temperature-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals

Massapprox. 100 g

Dimensions20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
