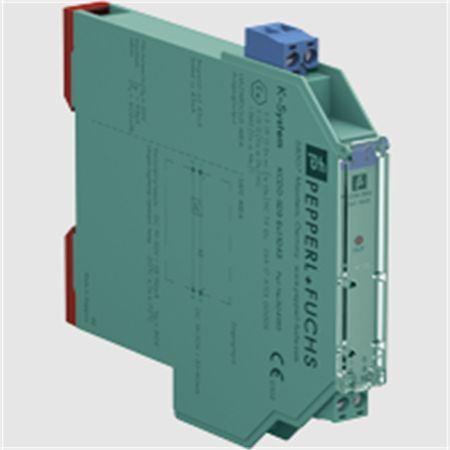

Pepperl+Fuch KFD2-SL2-Ex2.B Solenoid Driver

Pepperl+Fuch KFD2-SL2-Ex2.B Solenoid Driver

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

General specifications

Signal typeDigital Output

Functional safety related parameters

Safety Integrity Level (SIL)SIL 2

Supply

ConnectionPower Rail or terminals 14+, 15-

Rated voltage20 ... 30 V DC

Power consumptionmax. 3.3 W at 45 mA output current

Input

Connection sidecontrol side

Connectionterminals 7, 8, 9

Input currentapprox. 3 mA at 24 V DC

Signal level1-signal: 16 ... 30 V DC

0-signal: 0 ... 5 V DC

Output

Connection sidefield side

Internal resistor272 Ω

Current≤ 45 mA

Voltage≥ 11.7 V

Open loop voltagemin. 24 V

Connectionterminals 1+, 2-, 3- channel 1 ,

terminals 4+, 5-, 6- channel 2

Output rated operating current45 mA

Output signalThese values are valid for the rated operating voltages from 20 ... 30 V DC.

Energized/De-energized delay≤ 20 ms / ≤ 20 ms

Galvanic isolation

Input/Outputreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Input/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Power supply/Outputreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Indicators/settings

Display elementsLEDs

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibilityNE 21:2006

Degree of protectionIEC 60529:2001

Protection against electrical shockEN 61010-1:2010

Ambient conditions

Ambient temperature-20 ... 50 °C (-4 ... 122 °F)

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals

Massapprox. 150 g

Dimensions20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
