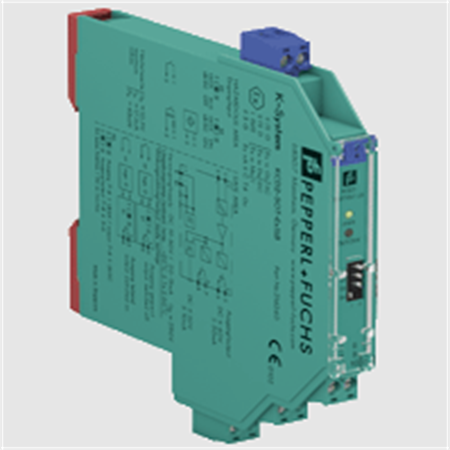

Pepperl+Fuchs KCD2-SR-Ex1 Switch Amplifier

Pepperl+Fuchs KCD2-SR-Ex1 Switch Amplifier

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

General specifications

Signal typeDigital Input

Functional safety related parameters

Safety Integrity Level (SIL)SIL 2

Supply

ConnectionPower Rail or terminals 9+, 10-

Rated voltage19 ... 30 V DC

Ripple≤ 10 %

Rated current≤ 29 mA

Power dissipation≤ 600 mW

Power consumption≤ 600 mW

Input

Connection sidefield side

Connectionterminals 1+, 2-

Rated valuesacc. to EN 60947-5-6 (NAMUR)

Open circuit voltage/short-circuit currentapprox. 8 V DC / approx. 8 mA

Switching point/switching hysteresis1.2 ... 2.1 mA / approx. 0.2 mA

Line fault detectionbreakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA

Pulse/Pause ratiomin. 20 ms / min. 20 ms

Output

Connection sidecontrol side

Connectionterminals 5, 6

Output Isignal ; relay

Contact loading250 V AC/2 A/cos φ > 0.75; 126.5 V AC/4 A/cos φ > 0.75; 30 V DC/2 A resistive load

Minimum switch current2 mA / 24 V DC

Energized/De-energized delay≤ 20 ms / ≤ 20 ms

Mechanical life107 switching cycles

Transfer characteristics

Switching frequency≤ 10 Hz

Galvanic isolation

Input/Outputreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Input/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Output/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Indicators/settings

Display elementsLEDs

Control elementsDIP switch

Configurationvia DIP switches

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Low voltage

Directive 2014/35/EUEN 61010-1:2010+A1:2019+A1:2019/AC:2019

Conformity

Electromagnetic compatibilityNE 21:2017 , EN 61326-3-1:2017 , EN IEC 61326-3-2:2018

Degree of protectionIEC 60529:1989+A1:1999+A2:2013

Functional safetyIEC/EN 61508:2010

InputEN 60947-5-6:2000

Ambient conditions

Ambient temperature-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals

Massapprox. 100 g

Dimensions12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D) , housing type A2

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
