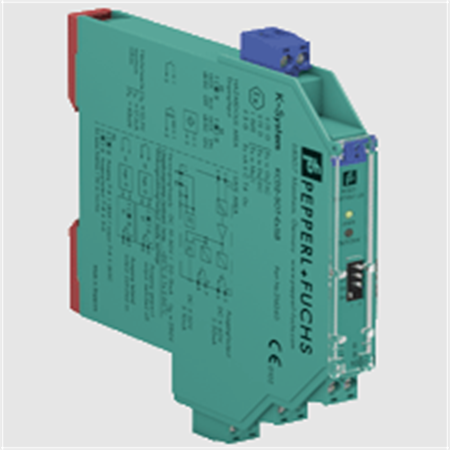

Pepperl+Fuchs KFA6-ER-Ex1.W.LB Conductive Switch Amplifier

Pepperl+Fuchs KFA6-ER-Ex1.W.LB Conductive Switch Amplifier

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

General specifications

Signal typeDigital Input

Supply

Connectionterminals 14, 15

Rated voltage207 ... 253 V AC, 45 ... 65 Hz

Rated current≤ 7 mA

Power consumption< 1.2 W

Input

Connection sidefield side

Connectionterminals 1 (mass), 2 (min), 3 (max)

Control inputmin./max. control system: terminals 1, 2, 3

on/off control system: terminals 1, 3

Response sensitivity1 ... 150 kΩ , adjustable via potentiometer

Output

Connection sidecontrol side

Connectionterminals 7, 8, 9; 10, 11, 12

Switching powermax. 192 W , 2000 VA

Outputsignal ; relay

Contact loading253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load

Time constant for signal damping0.5 s, 2 s, 5 s, 10 s

Galvanic isolation

Input/Outputreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Input/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Output/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Indicators/settings

Display elementsLEDs

Control elementsDIP switch

potentiometer

Configurationvia DIP switches

via potentiometer

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Low voltage

Directive 2014/35/EUEN 61010-1:2010

Conformity

Electromagnetic compatibilityNE 21:2006

Degree of protectionIEC 60529:2001

Ambient conditions

Ambient temperature-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals , max. 2.5 mm2

Massapprox. 150 g

Dimensions20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
