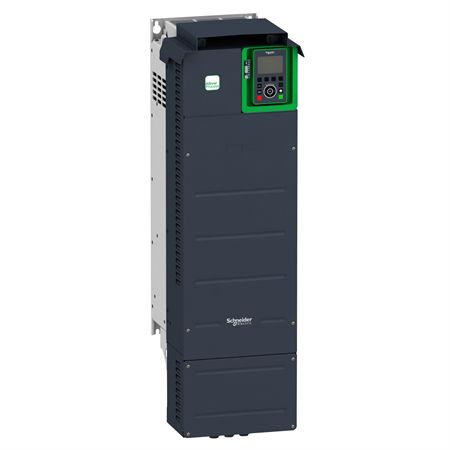

Schneider ATV930D75M3C Variable speed drive, Altivar Process ATV900, ATV930, 75 kW

Schneider ATV930D75M3C Variable speed drive, Altivar Process ATV900, ATV930, 75 kW

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Main

range of productAltivar Process ATV900

device applicationIndustrial application

product or component typeVariable speed drive

product destinationAsynchronous motors

Synchronous motors

product specific applicationProcess for industrial

variantWithout braking chopper

Standard version

network number of phases3 phases

mounting modeWall mount

communication port protocolEtherNet/IP

Modbus TCP

Modbus serial

[Us] rated supply voltage200...240 V - 15...10 %

motor power kW75.0 kW for normal duty

55.0 kW for heavy duty

motor power hp100.0 hp for normal duty

75.0 hp for heavy duty

continuous output current211 A at 2.5 kHz for heavy duty

282 A at 2.5 kHz for normal duty

EMC filterIntegrated

With EMC plate option

IP degree of protectionIP21

degree of protectionUL type 1

option moduleSlot A: communication module for Profibus DP V1

Slot A: communication module for PROFINET

Slot A: communication module for DeviceNet

Slot A: communication module for EtherCAT

Slot A: communication module for CANopen daisy chain RJ45

Slot A: communication module for CANopen SUB-D 9

Slot A: communication module for CANopen screw terminals

Slot A/slot B/slot C: digital and analog I/O extension module

Slot A/slot B/slot C: output relay extension module

Slot B: 5/12 V digital encoder interface module

Slot B: analog encoder interface module

Slot B: resolver encoder interface module

communication module for Ethernet Powerlink

discrete input logic16 preset speeds

asynchronous motor control profileOptimized torque mode

Variable torque standard

Constant torque standard

synchronous motor control profilePermanent magnet motor

Synchronous reluctance motor

maximum output frequency599 Hz

switching frequency1...8 kHz adjustable

2.5...8 kHz with derating factor

nominal switching frequency2.5 kHz

line current256.0 A at 200 V (normal duty)

189.0 A at 200 V (heavy duty)

215.0 A at 240 V (normal duty)

161.0 A at 240 V (heavy duty)

apparent power83.7 kVA at 240 V (normal duty)

61.1 kVA at 240 V (heavy duty)

maximum transient current338.4 A during 60 s (normal duty)

316.5 A during 60 s (heavy duty)

network frequency50...60 Hz

prospective line Isc50 kA
