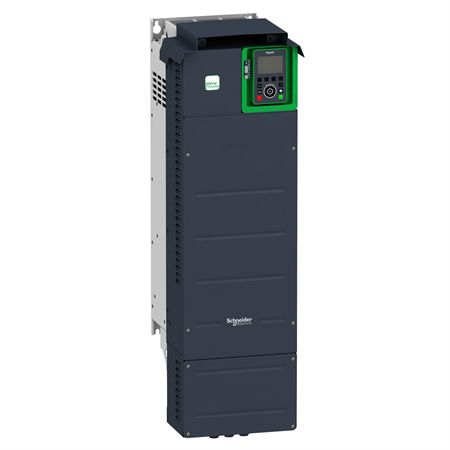

Schneider ATV930D55M3C Variable speed drive, Altivar Process ATV900, ATV930, 55 kW

Schneider ATV930D55M3C Variable speed drive, Altivar Process ATV900, ATV930, 55 kW

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

Main

range of productAltivar Process ATV900

device applicationIndustrial application

product or component typeVariable speed drive

product destinationSynchronous motors

Asynchronous motors

product specific applicationProcess for industrial

variantWithout braking chopper

Standard version

network number of phases3 phases

mounting modeWall mount

communication port protocolModbus TCP

Modbus serial

EtherNet/IP

[Us] rated supply voltage200...240 V - 15...10 %

motor power kW55.0 kW for normal duty

45.0 kW for heavy duty

motor power hp75.0 hp for normal duty

60.0 hp for heavy duty

continuous output current211 A at 2.5 kHz for normal duty

176 A at 2.5 kHz for heavy duty

EMC filterIntegrated

With EMC plate option

IP degree of protectionIP21

degree of protectionUL type 1

option moduleSlot A: communication module for Profibus DP V1

Slot A: communication module for PROFINET

Slot A: communication module for DeviceNet

Slot A: communication module for EtherCAT

Slot A: communication module for CANopen daisy chain RJ45

Slot A: communication module for CANopen SUB-D 9

Slot A: communication module for CANopen screw terminals

Slot A/slot B/slot C: digital and analog I/O extension module

Slot A/slot B/slot C: output relay extension module

Slot B: 5/12 V digital encoder interface module

Slot B: analog encoder interface module

Slot B: resolver encoder interface module

communication module for Ethernet Powerlink

discrete input logic16 preset speeds

asynchronous motor control profileVariable torque standard

Optimized torque mode

Constant torque standard

synchronous motor control profilePermanent magnet motor

Synchronous reluctance motor

maximum output frequency599 Hz

switching frequency1...8 kHz adjustable

2.5...8 kHz with derating factor

nominal switching frequency2.5 kHz

line current189.0 A at 200 V (normal duty)

156.0 A at 200 V (heavy duty)

161.0 A at 240 V (normal duty)

134.0 A at 240 V (heavy duty)

apparent power61.1 kVA at 240 V (normal duty)

50 kVA at 240 V (heavy duty)

maximum transient current253.2 A during 60 s (normal duty)

264 A during 60 s (heavy duty)

network frequency50...60 Hz

prospective line Isc50 kA
