SPXCDALMTXT: transmitter only—sensor ordered separately

The Honeywell Sensepoint XCD SPXCDALMTXT is a toxic-gas transmitter-only configuration. It provides the display, electronics, painted LM25 enclosure, standard 4-20 mA output and two M20 cable entries, but does not include the gas sensor cartridge.

This model is useful when a project purchases transmitter bodies and sensors separately, or when an installed transmitter requires replacement while the correct compatible sensor is sourced independently. Buyers needing a complete detector should specify both the required gas/range and the full detector configuration.

What is included—and what is not

Why transmitter-only identification matters

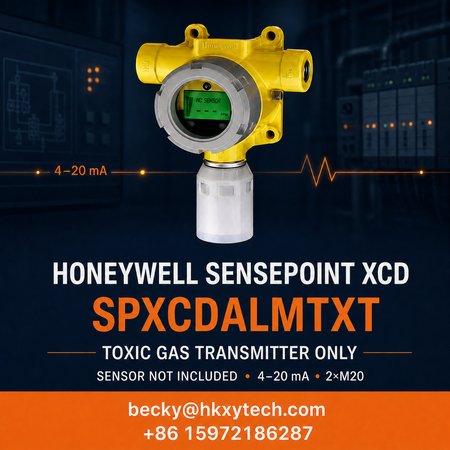

A photograph of an assembled XCD unit can make transmitter-only and complete-detector listings look similar. The decisive details are the full part number and whether a compatible sensing cartridge is included. Ordering SPXCDALMTXT alone will not provide a functioning gas measurement point until the correct sensor is installed and commissioned.

Sensor matching and commissioning

The toxic transmitter is designed to work with compatible Sensepoint XCD toxic sensor cartridges. The target gas and measurement range must be selected separately. Honeywell states that the transmitter recognizes a compatible installed sensor within its category and configures itself accordingly.

After sensor installation, qualified personnel must perform the specified setup, calibration and bump or gassing test to validate the complete assembly. Automatic recognition is not a substitute for functional testing or site acceptance.

Typical procurement scenarios

• Replacement of a damaged XCD toxic transmitter body.

• Large projects that stage transmitter installation before sensor delivery.

• Maintenance inventory where transmitters and limited-shelf-life sensors are managed separately.

• Retrofit projects that must match an existing LM25 and M20 installation.

SPXCDALMTXT RFQ checklist

1. Confirm the exact code SPXCDALMTXT.

2. State quantity, destination and required delivery date.

3. Confirm that transmitter-only supply is required.

4. Identify the target toxic gas, range and separate sensor part number.

5. Provide the existing nameplate for replacement work.

6. Confirm 4-20 mA, M20 entries, approvals and project documentation.

Availability and lead time are subject to quotation. If a complete detector is required, send the target gas, range and installation details so that the transmitter and sensor configuration can be checked together.
