HIRSCHMANN DRAGON MACH4000 52-PORT FIBER BACKBONE

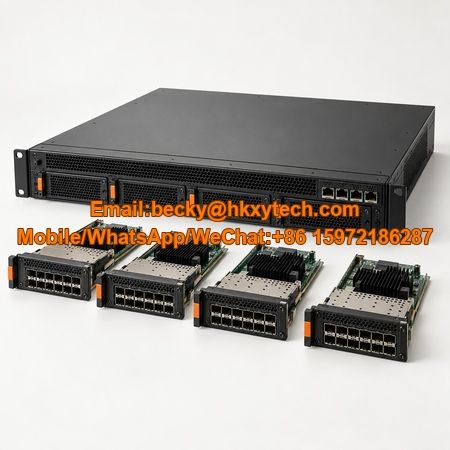

DRAGON MACH4000-52G-L3A-MR, ordering number 942318003, provides modular Gigabit density and advanced Layer 3 multicast routing.
MODULAR GIGABIT ARCHITECTURE
The basic unit includes four fixed Gigabit Ethernet SFP ports. Four media-module slots expand the chassis with up to 48 additional Fast/Gigabit Ethernet ports, 12 per module, for a total capacity of 52 Gigabit ports. HiOS L3A-MR supports routed unicast and multicast traffic.
ENGINEERING BENEFITS
Up to 52 Gigabit Ethernet ports
Four fixed GE SFP interfaces for optical backbone links
Modular copper, fiber and PoE line-card options
Layer 3 multicast routing for video and process data
Redundant field-replaceable power architecture
19-inch rack design for central industrial networks
| DRAGON MACH4000/4500 | |||
|---|---|---|---|
| Sub-Group | Ordering Code | Part Number/Model | Detailed Product Description |
| DRAGON MACH4500 Chassis | 942153001 | DRAGON MACH4500-80G+8X-L2A | DRAGON MACH4500 Chassis with 8x10G (SFP+ - Fixed) + 32x1G (TX - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L2A |
| 942153002 | DRAGON MACH4500-80G+8X-L3A-UR | DRAGON MACH4500 Chassis with 8x10G (SFP+ - Fixed) + 32x1G (TX - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L3A UR (Unicast Routing only) | |
| 942153003 | DRAGON MACH4500-80G+8X-L3A-MR | DRAGON MACH4500 Chassis with 8x10G (SFP+ - Fixed) + 32x1G (TX - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L3A MR (Unicast + Multicast Routing) | |
| DRAGON MACH4000 Chassis | 942154001 | DRAGON MACH4000-48G+4X-L2A | DRAGON MACH4000 Chassis with 4x10G (SFP+ - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L2A |
| 942154002 | DRAGON MACH4000-48G+4X-L3A-UR | DRAGON MACH4000 Chassis with 4x10G (SFP+ - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L3A UR (Unicast Routing only) | |
| 942154003 | DRAGON MACH4000-48G+4X-L3A-MR | DRAGON MACH4000 Chassis with 4x10G (SFP+ - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L3A MR (Unicast + Multicast Routing) | |
| 942318001 | DRAGON MACH4000-52G-L2A | DRAGON MACH4000 Chassis with 4x1G (SFP+ - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L2A | |
| 942318002 | DRAGON MACH4000-52G-L3A-UR | DRAGON MACH4000 Chassis with 4x1G (SFP+ - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L3A UR (Unicast Routing only) | |
| 942318003 | DRAGON MACH4000-52G-L3A-MR | DRAGON MACH4000 Chassis with 4x1G (SFP+ - Fixed) + 48x1G (with modules); Fan Unit Installed; HiOS L3A MR (Unicast + Multicast Routing) | |
| Components | 942155001 | D4K-12TP-RJ45, Linecard | DRAGON MACH4K Module with 12 x RJ45 10/100/1000 Ports |
| 942155501 | D4K-12SFP, Linecard | DRAGON MACH4K Module with 12 x 100/1000 SFP Ports | |
| 942294001 | D4K-10TP-PoE, Linecard | DRAGON MACH4K Module with 10 x 100/1000/10000 RJ45 PoE Ports | |
| 942156001 | D4K-PSU-300W-HV, PowerSupply | DRAGON 4K 300-Watt High Voltage Power Supply Unit | |
| 942157001 | D4K-AIR, Fan Unit | DRAGON M4K Fan Unit; field-replaceable / hot-swappable; 5 load sharing inbuilt fans | |
| Blank Panels | 942222001 | D4K-LC-PANEL | Blind Panel to cover one empty Line Card Slot if module is not used |
| 942222002 | D4K-PSU-PANEL | Blind Panel to cover redundant PSU Slot if second PSU is not used | |
