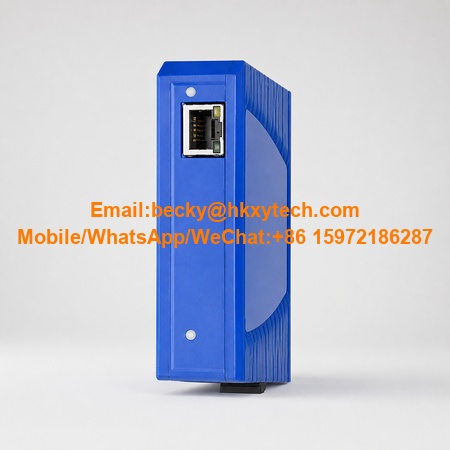

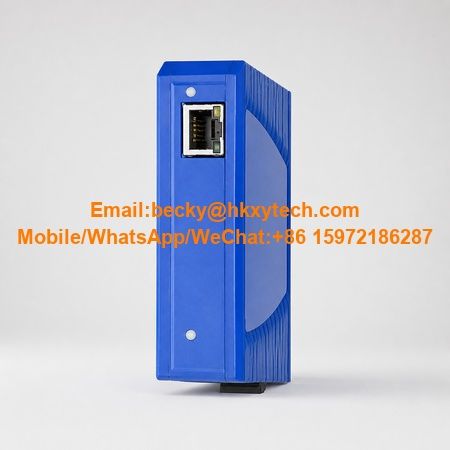

HIRSCHMANN SPIDER-SL-20-01T1M29999SZ9HHHH FOR COMPACT COPPER-TO-FIBER LINKS
PRODUCT SUMMARY: This SPIDER III Standard Line switch combines one 10/100BASE-TX RJ45 port with one 100BASE-FX multimode SC interface in a slim, fanless DIN-rail housing. It provides a straightforward unmanaged connection between a local copper device and a longer-distance industrial fiber segment.
BUILT FOR SMALL CONTROL CABINETS
At approximately 26 × 102 × 79 mm and 100 g, the unit fits where cabinet space is limited. Plug-and-play switching, auto-negotiation and auto-crossing on the copper port reduce commissioning steps for machine builders and automation technicians.
KEY TECHNICAL DATA
1 × 10/100BASE-TX RJ45
1 × 100BASE-FX multimode SC
12/24 VDC input, 9.6–32 VDC operating range
Maximum power consumption: 2.0 W
DIN-rail mounting and IP30 enclosure
Operating temperature: 0°C to +60°C
HIRSCHMANN SPIDER ORDERING MODELS FROM THE SUPPLIED WORKBOOK
The complete 37-model table from the attachment is reproduced below for comparison and quotation reference. The supplied table lists the closest standard-line reference as SPIDER-SL-20-01T1M29999SY9HHHH / 942132005; this page retains the requested SZ9 main model.
| SPIDER Family | Order Code | Description | Product Code |
|---|---|---|---|
| SPIDER III Standard Line Switches | 942132001 | 5 x 10/100Base-TX | SPIDER-SL-20-05T1999999SY9HHHH |
| 942132016 | 5 x 10/100Base-TX* | SPIDER-SL-20-05T1999999TY9HHHH | |
| 942132002 | 8 x 10/100Base-TX | SPIDER-SL-20-08T1999999SY9HHHH | |
| 942132017 | 8 x 10/100Base-TX* | SPIDER-SL-20-08T1999999TY9HHHH | |
| 942335003 | 5 x 10/100/1000Base-T | SSR40-5TX | |
| 942335013 | 5 x 10/100/1000Base-T with QoS for Ethernet/IP | SSR40-5TX-IP | |
| 942335023 | 5 x 10/100/1000Base-T with QoS for PROFINET | SSR40-5TX-PN | |
| 942335004 | 8 x 10/100/1000Base-T | SSR40-8TX | |
| 942335014 | 8 x 10/100/1000Base-T with QoS for Ethernet/IP | SSR40-8TX-IP | |
| 942335024 | 8 x 10/100/1000Base-T with QoS for PROFINET | SSR40-8TX-PN | |
| 942132005 | 1 x 10/100Base-TX, 1 x 100Base-FX, MM-SC | SPIDER-SL-20-01T1M29999SY9HHHH | |
| 942132006 | 1 x 10/100Base-TX, 1 x 100Base-FX, SM-SC | SPIDER-SL-20-01T1S29999SY9HHHH | |
| 942132007 | 4 x 10/100Base-TX, 1 x 100Base-FX, MM-SC | SPIDER-SL-20-04T1M29999SY9HHHH | |
| 942132018 | 4 x 10/100Base-TX, 1 x 100Base-FX, MM-SC* | SPIDER-SL-20-04T1M29999TY9HHHH | |
| 942132008 | 4 x 10/100Base-TX, 1 x 100Base-FX, MM-ST | SPIDER-SL-20-04T1M49999SY9HHHH | |
| 942132019 | 4 x 10/100Base-TX, 1 x 100Base-FX, MM-ST* | SPIDER-SL-20-04T1M49999TY9HHHH | |
| 942132009 | 4 x 10/100Base-TX, 1 x 100Base-FX, SM-SC | SPIDER-SL-20-04T1S29999SY9HHHH | |
| 942132010 | 6 x 10/100Base-TX, 1 x 100Base-FX, MM-SC | SPIDER-SL-20-06T1M29999SY9HHHH | |
| 942132011 | 6 x 10/100Base-TX, 1 x 100Base-FX, SM-SC | SPIDER-SL-20-06T1S29999SY9HHHH | |
| 942132012 | 6 x 10/100Base-TX, 2 x 100Base-FX, MM-SC | SPIDER-SL-20-06T1M2M299SY9HHHH | |
| 942132013 | 6 x 10/100Base-TX, 2 x 100Base-FX, SM-SC | SPIDER-SL-20-06T1S2S299SY9HHHH | |
| 942335015 | 6 x 10/100/1000Base-T, 2 x FE/GE SFP Slot | SSR40-6TX/2SFP | |
| SPIDER III Power over Ethernet Switches | 942274007 | 4 x 10/100BASE-TX, 1 x 100BASE-FX, SM-SC, PoE | SPIDER-SL-24-04T1S29999TY9HHHH |
| 942274005 | 4 x 10/100BASE-TX, 1 x 100BASE-FX, MM-SC, PoE | SPIDER-SL-24-04T1M29999TY9HHHH | |
| 942274009 | 5 x 10/100BASE-TX, PoE | SPIDER-SL-24-05T1999999TY9HHHH | |
| 942274002 | 5 x 10/100/1000BASE-T, PoE | SPIDER-SL-44-05T1999999TY9HHHH | |
| 942274001 | 5 x 10/100/1000BASE-T, 1 x FE/GE SFP Slot, PoE | SPIDER-SL-44-05T1O69999TY9HHHH | |
| 942274003 | 8 x 10/100/1000BASE-T, PoE | SPIDER-SL-44-08T1999999TY9HHHH | |
| 942274004 | 8 x 10/100/1000BASE-T, 2 x FE/GE SFP Slot, PoE | SPIDER-SL-44-08T1O6O699TY9HHHH | |
| SPIDER III Premium Line Switches | 942335017 | 8 x 10/100Base-TX | SPR20-8TX-EEC |
| 942335020 | 8 x 10/100/1000Base-T | SPR40-8TX-EEC | |
| 942335028 | 8 x 10/100Base-TX, 1 x 100Base-FX, MM-SC | SPR20-8TX/1FM-EEC | |
| 942335030 | 7 x 10/100Base-TX, 2 x 100Base-FX, MM-SC | SPR20-7TX/2FM-EEC | |
| 942335031 | 7 x 10/100Base-TX, 2 x 100Base-FX, SM-SC | SPR20-7TX/2FS-EEC | |
| 942335033 | 1 x 10/100/1000Base-T, 1 x FE/GE SFP Slot | SPR40-1TX/1SFP-EEC | |
| 942141036 | 16 x 10/100BASE-TX | SPIDER-PL-20-16T1999999TY9HHHV | |
| 942141037 | 24 x 10/100BASE-TX, 2 x FE SFP Slot | SPIDER-PL-20-24T1Z6Z699TY9HHHV |
REQUEST PRICE, AVAILABILITY AND LEAD TIME
Email: becky@hkxytech.com
Mobile/WhatsApp/WeChat: +86 15972186287
Technical note: Confirm the manufacturer's current datasheet, exact order number, compatible transceivers, software release, approvals and lifecycle status before purchase.
