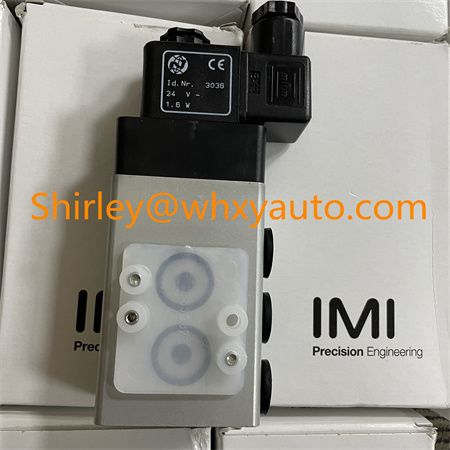

Norgren Herion 26230 Indirectly Solenoid Actuated Spool Valves Hot Selling
December
29, 2021
Norgren Herion 26230 Indirectly Solenoid Actuated Spool Valves Hot Selling
Shirley@whxyauto.com +86-15072331761
For single and double operated
actuators
Standard manual override with detent
Compact design
High flow rate
Simple design of soft spool seal
system
Maintenance-free
Easily interchangeable solenoid
system
Exhaust air recirculation
Shirley@whxyauto.com +86-15072331761
Technical data
Medium:
Compressed air, filtered, lubricated and
non-lubricated
Operating pressure:
2 to 8 bar
Flow direction:
Fixed
Mounting position:
Optional, preferably with solenoid on top
Ambient temperature:
-10°C to 50 °C
For temperatures below 0°C use conditioned dry air. If
installed outdoors protect all connections against the
penetration of moisture
Consult our Technical Service for use below +2°C
Electrical connection:
Connector interface to DIN 43650 form
A and B
Materials
Housing: aluminium
Pilot flange: plastic
Seat seal: NBR (Perbunan)
Shirley@whxyauto.com +86-15072331761
